Temperature broad leaf (LAT-B3 and LAT-B4)

    The Leaf-to-Air-Temperature sensors (LAT) LAT-B3 and LAT-B4 are precise dual-probe sensors designed for continuous measurements of leaf surface and ambient air temperatures. Two high-precision micro-thermistor probes simultaneously measure leaf temperature (Tleaf) and air temperature (Tair). Each sensor is individually calibrated by matching the two probes, ensuring high accuracy in determining the leaf-to-air temperature difference (ΔTleaf-air), which is calculated from the concurrent temperature measurements.

    These devices are suitable for long-term applications under outdoor conditions. Due to their extremely low power consumption, Ecomatik LAT sensors are ideal for battery-powered solutions, e.g., in IoT applications.

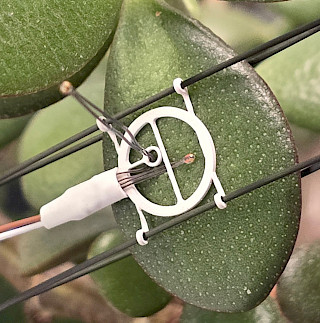

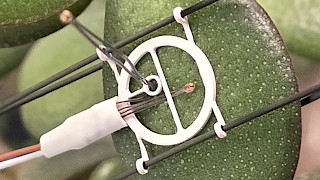

    The LAT-B3 is mounted on broad leaves using an ultra-light-weight magnetic clamp mechanism. The LAT-B4 offers both magnetic mounting and an alternative ultra-light-weight carbon rod clamp mechanism, making it especially suitable for thicker leaves with a leaf thickness greater than 0.7 mm.

    Advantages

    • Direct, continuous and highly accurate measurement of blade temperature (Tleaf), air temperature (Tair), and leaf-air temperature difference (ΔTleaf-to-air)
    • Small, lightweight and flexible sensors to minimize loading on and damage to the measurement object
    • Easy installation
    • Maximum stability against wind and rain; specifically designed for field conditions
    • Customizable production possible, e.g. for specific leaf/needle size
    • Extremely low power consumption, suitable for IoT application
    • Sensor signal in mV, measurable with most common data loggers

    Limits

    • Not suitable for leaves with a length of less than 1.4 mm and a width of smaller than 0.8 or larger than 20 cm and not suitable for leaves with a thickness of > 0.7 mm

    Technical Data

    Sensor model name

    Leaf temperature sensor for broad leaves Type LAT-B3 and LAT-B4

    Scope of application

    For continuous measurement of leaf surface (Tleaf), surrounding ambient air temperature (Tair), and leaf-to-air temperature difference (Δtleaf-to-air)

    Suitable for leaf dimensions

    LAT-B3: Leaf length > 1.4 cm, stable magnet attachment to leaves with a thickness of < 0.7 mm.

    LAT-B4: Leaf length > 1.4 cm, stable magnet attachment to leaves with a thickness of < 0.7 mm or alternatively with carbon-rod-clamp to leaves with a thickness > 0.7 mm.

    Special feature/limitations

    Measurement of the absolute temperatures of leaf surface and ambient air, high accuracy in leaf-to-air temperature difference (individually matched probes)
    Dual-probe spacing: User-configurable distance between Tleaf and Tair probes between 0 to max. 35 mm

    Measurement range

    -25 to +70 °C

    Resolution

    Theoretically infinite depending on the data logger used
    e.g.
    CR300-Logger (at 25°C): < 0,000025 °C
    DL 18 Logger (at 25°C): < 0,00035 °C

    Accuracy

    Sensor dependent:
    Tolerace of absolute Tair & Tleaf
    ± 0,4 °C in temperature range between +5°C to +40°C
    ± 0,8 °C in temperature range between -25°C to +70°C


    Tolerace of Leaf-to-Air-Temperature difference (∆Leaf-Air):
    ± 0,2° in temperature range between -25°C to +70°C
    Logger dependent, e.g.:
    CR300-Logger (at 25°C): ± 0,01 °C
    DL 18 Logger (at 25°C): ± 0,03 °C:

    Data logger requirements & sensor output signal

    Analog: 0 V to Vex (supply voltage), 2 single-ended channels

    Digital: SDI-12: Output in °C

    Data logging

    Flexible options for data logging & transmission:

    1. Data logger, manual readout (analog or SDI-12, e.g. DL18 or CR350)
    2. LoRaWAN, wireless data transmission (analog, e.g. IoP-S-LA)
    3. NB-IoT, wireless data transmission (analog, e.g. IoP-S-NA, IoP-S-LTEMA)

    Power supply

    VEX (! Regulated!) 0.5 to 2.5 VDC, required excitation interval time max. 100 ms. Power consumption negligibly low, max. 16.5 nWh per measurement

    Operational conditions

    Air temperature: -25 to 70 °C, rel. humidity: 0 to 100%

    Size and Weight

    Diameter sensor 12mm, weight 0.9g (only sensor, without cable)

    Sensor cable length

    0.5m + 4.5m pluggable extension, plug extension up to max. 50 m possible

    Manual

    LAT-B3

    LAT-B3(330.2 kB)

    Technical data sheets

    LAT-B3

    LAT-B3(316.4 kB)
