T-Tissue: Tissue temperature (e.g., buds, cambium, wood) T-Surface: Surface temperature (e.g., bark) T-Soil: soil temperature or underwater temperature

The T-series sensors are used for direct, continuous and high-precision temperature measurements. The various T-series models are designed specifically to record internal temperatures (T-Tissue), outer/surface temperatures (T-surface) on plants and other measurement objects, or for soil/water temperature (T-soil). These devices are suitable for long-term application in outdoor conditions. Due to their extremely low power consumption, Ecomatik T-sensors are ideal for battery-powered solutions, e.g. in IoT applications.


For size and other model characteristics, see specifications.

Advantages

  • Easy installation
  • Robust; designed for use under outdoor conditions
  • Direct, continuous and highly accurate temperature measurements
  • Sensor signal documented in mV, recordable with most common data loggers
  • Extremely low power consumption, suitable for IoT applications

Specific to the T-Tissue model

  • Small, light, and flexible, especially for minimally invasive installation within measurement object

Specific to the T-Surface model

  • Robust, yet small, light, and flexible

Specific to the T-soil model

  • Hermetically sealed in metal sleeve, for long-term operation in soil or under water

Limits

Specific to the T-Tissue model

  • Not suitable for measurement objects < 4 mm

Technical data

Sensor model name

Temperature sensor type

T-Tissue

Temperature sensor type

T-Surface

Temperature sensor type

T-Soil

Scope of application

Internal measurements, e.g. inner tissues

Measurements on surfaces

Measurements belowground or underwater

Suitable for

Tree bud, cambium, fruit temperature

Tree bark, fruit, or other surface areas

Soil and water temperature

Special features/

limitations

Minimally invasive microprobe

Small but robust; for permanent outdoor use

Hermetically sealed in robust metal sleeve

for permanent operation belowground or underwater

Measurement range

-40 to 70°C

-40 to 70°C

-40 to 70°C

Resolution

Theoretically infinite depending on the data logger used

e.g.

CR300 logger (at 25 ° C): < 0.001 ° C

DL 18 Logger (at 25 ° C): < 0.002 ° C

Theoretically infinite depending on the data logger used

e.g.

CR300 logger (at 25 ° C): < 0.001 ° C

DL 18 Logger (at 25 ° C): < 0.002 ° C

Theoretically infinite depending on the data logger used

e.g.

CR300 logger (at 25 ° C): < 0.001 ° C

DL 18 Logger (at 25 ° C): < 0.002 ° C

Accuracy

Sensor-dependent: max. ± 0.2 ° C

Logger dependent:

e.g.

CR300 logger (at 25 ° C): ± 0.03 ° C

DL 18 Logger (at 25 ° C): ± 0.07 ° C

Sensor-dependent: max. ± 0.2 ° C

Logger dependent:

e.g.

CR300 logger (at 25 ° C): ± 0.03 ° C

DL 18 Logger (at 25 ° C): ± 0.07 ° C

Sensor-dependent: max. ± 0.2 ° C

Logger dependent:

e.g.

CR300 logger (at 25 ° C): ± 0.03 ° C

DL 18 Logger (at 25 ° C): ± 0.07 ° C

Data logger requirements & sensor output signal

Minimum logger requirements:

1 single ended channel, providing a switched reference voltage (Vex)

Resolution: 12 bits in the measuring range from 0 to Vex

All loggers of Campbell Scientific as well as the DL 18 logger meet these requirements

Output signal: analogue DC voltage in the range from 0 to Vex

Minimum logger requirements:

2 single ended channels, providing a switched reference voltage (Vex)

Resolution: 12 bits in the measuring range from 0 to Vex

All loggers of Campbell Scientific as well as the DL 18 logger meet these requirements

Output signal: analogue DC voltage in the range from 0 to Vex

Minimum logger requirements:

2 single ended channels, providing a switched reference voltage (Vex)

Resolution: 12 bits in the measuring range from 0 to Vex

All loggers of Campbell Scientific as well as the DL 18 logger meet these requirements

Output signal: analogue DC voltage in the range from 0 to Vex

Power supply

VEX (! Regulated!) 0.5 to 2.5 VDC, required excitation interval time max. 100 ms.

Power consumption negligibly low, max. 8.3 nWh per measurement.

VEX (! Regulated!) 0.5 to 2.5 VDC, required excitation interval time max. 100 ms.

Power consumption negligibly low, max. 8.3 nWh per measurement.

VEX (! Regulated!) 0.5 to 2.5 VDC, required excitation interval time max. 100 ms.

Power consumption negligibly low, max. 8.3 nWh per measurement.

Operational conditions

Temperature: -25 to 70 ° C, rel, air humidity: 0 to 100%

Temperature: -25 to 70 ° C, rel, air humidity: 0 to 100%

Temperature: -25 to 70 ° C, rel, air humidity: 0 to 100%

Size and Weight

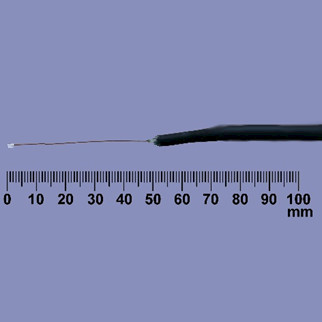

Cylindrical shape, diameter 0.5 mm, length 3.3 mm, weight 0.1 g (sensor only, cable not included)

Spherical shape, diameter 2 mm, length 3.3 mm, weight 0.3 g (sensor only, cable not included)

Form cylindrical, diameter 6 mm, length 50 mm, weight 5 g (sensor only, cable not included)

Material

Polyester, Polyimid, Epoxid

Epoxid

Epoxid, Aluminium

Sensor cable length

5 m, extendable to max. 50 m

5 m, extendable to max. 50 m

5 m, extendable to max. 50 m
